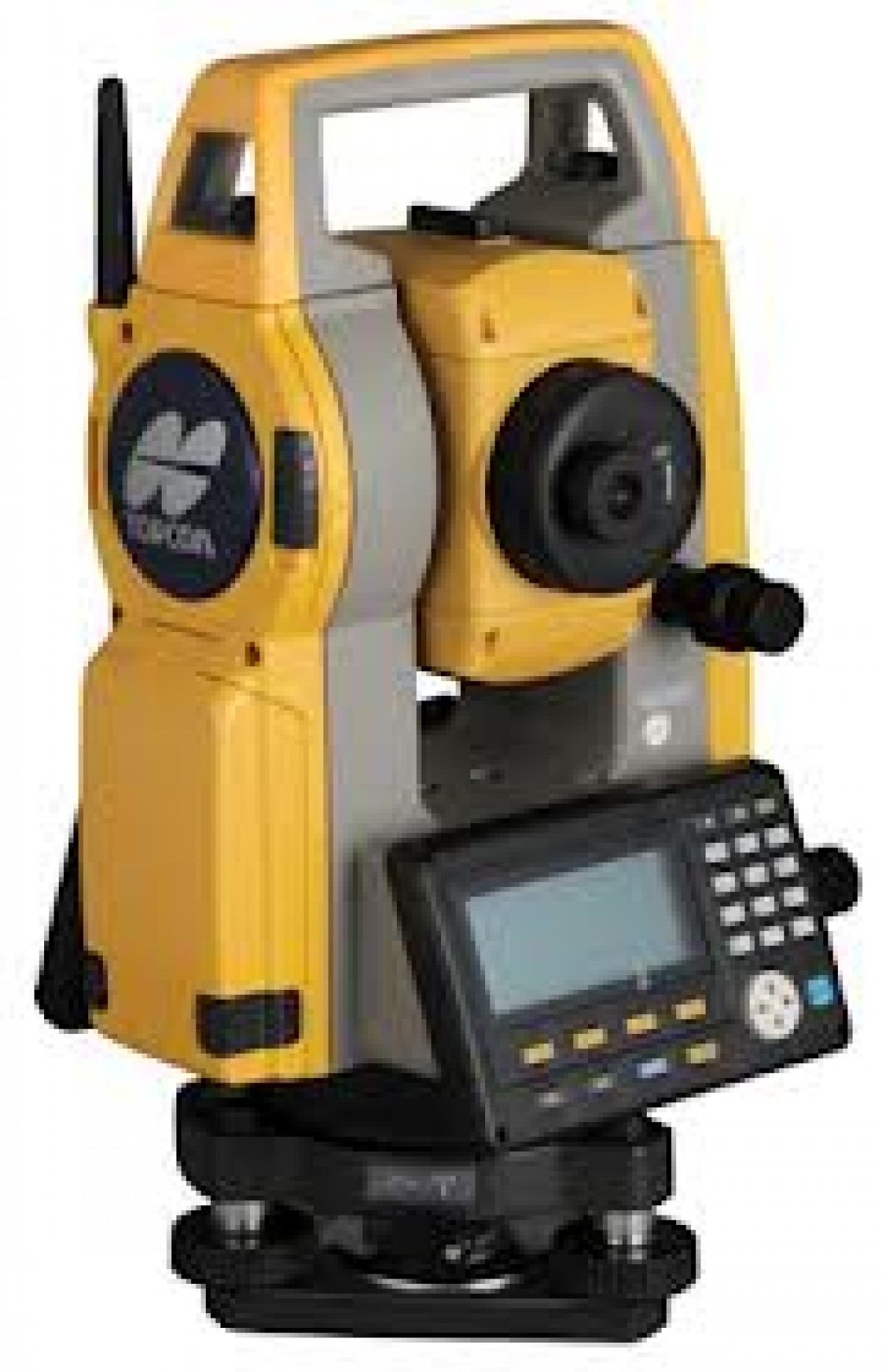

Total Station Topcon OS 105
Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology
The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.
Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.
Features
Advanced Security & Maintenance with New TSshield™
MAGNET Field On-board
Exclusive LongLink™ Communications Functionality
Fast and Powerful EDM
Advanced Angle Accuracy
The OS is the perfect total station for many field applications including:
• Land Surveying Property
• Land Surveying Topo & Stakeout
• Earthwork Volumes
• Building Interior Layout
• Construction of Roads
• Law Enforcement Mapping
Primary OS features include:
Exclusive LongLinkTM Ultra-Powerful, Advanced EDM
• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.
• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot
Advanced Angle Encoder System EDM Trigger Key
• “Best in Class” 1” angle accuracy available
• Incorporates exclusive IACS
(Independent Angle Calibration System)
on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology
• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands
Advanced OS features include: Standard OS package includes:
• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button
• OS Total Station
• Battery and Charger (one battery and charger included)
• Lens Cap and Hood
• Tool Kit
• USB stick with digital Manual
• Quick Guide
• Carry Case and Carry Straps
QUICK Specs
Angle Measurement
Min. Resolution/Accuracy
OS-101 0.5”/1”
OS-102 1”/2”
OS-103 1”/3”
OS-105 (Single Display) 1”/5”
IACS (Independent Angle Calibration System) Standard on 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing
Bluetooth® Class 1
USB 2.0 Slot (Host + Slave)
RS-232C Serial
General
Display/Keyboard Dual, LCD, Touchscreen
(OS-105 Single)
Battery Operation Up to 20 hours
Dust/Water Protection IP65
Wireless Connection Bluetooth® Class 1
Operating Range -30C to +60C
-35C to +60C*
Available Accessories:
• Unit Topcon Totalstation
• 2 x Aluminum Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prism
• 1 x Cable Data
• 1 x Software Data
