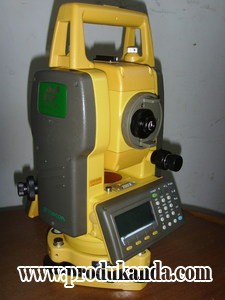

Total Station TOPCON GTS 255
Features Total Station TOPCON GTS 255 :
- Economical, value priced measuring solution
- Rugged, durable, water resistant design (IP54)
- Two accuracies from which to choose: 2" and 5"
- Dual-axis compensation
- Onboard programs and 24,000 point data storage
- Ideal as a construction stakeout total station
Spesifikasi Total Station TOPCON GTS 255 :
|
Model |
GTS-255 |
|
|
Telescope |
||
|
Magnification |
30x |
|
|
Resolving power |
3.0" |
|
|
Length: 150mm, Objective aperture: 45mm (50mm for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m |
||
|
Angle measurement |
||
|
Display resolutions (selectable) |
1" / 5" (0.0002 / 0.001gon) |
|
|
Accuracy (ISO 17123-3:2001) |
5" |
|
|
Method |
Absolute rotary encoder scanning |
|
|
Detecting system |
Horizontal |
2 sides |
|
Vertical |
1 side |
|
|
Compensator |
Dual-axis liquid tilt sensor, working range: ±3', Correction unit: 1” |
|
|
Distance measurement |
||
|
Measuring range (under average conditions*1) |
Mini prism |
900m (3,000ft) |
|
One prism |
2,000m (6,600ft.) / Under good conditions*2: 2,300m (7,500ft.) |
|
|
Three prisms |
2,700m (8,900ft.) / Under good conditions*2: 3,100m (10,200ft.) |
|
|
Accuracy (D=measuring distance in mm) |
±(2mm + 2ppm x D) m.s.e. |
|
|
Least count in measurement |
Fine: 1mm (0.005ft.) / 0.2mm (0.001ft.), Coarse: 10mm (0.02ft.) / 1mm (0.005ft.), Tracking: 10mm (0.02ft.) |
|
|
Measurement time*3 |
Fine: 1mm: 1.2s (Initial 4s) / 0.2mm: 2.8s (Initial 5s), Coarse: 0.7s (Initial 3s), Tracking: 0.4s (Initial 3s) |
|
|
Interface and Data management |
||
|
Display |
Graphics LCD, 160 × 64dots |
|
|
Keyboard |
Alphanumeric 24keys |
|
|
Control panel location |
On both faces |
|
|
Data storage |
Internal memory |
24,000pts. |
|
Interface |
RS-232C |
|
|
General |
||
|
Levels |
Circular level |
10' / 2mm |
|
Plate level |
30" / 2mm |
|
|
Optical plummet telescope |
Magnification: 3x, Focusing range: 0.5m to infinity, Image: Erect |
|
|
Dust and water protection (With BT-G1W) |
IP54 (IEC 60529) |
|
|
Operating temperature |
-20 to +50°C (-4 to 122°F) |
|
|
Size / Instrument height |
W184 x D172 x H336mm (W7.2 x D6.8 x H13.2in.) /176mm (6.93in.) from the tribrach dish |
|
|
Weight |
Instrument with battery |
4.9kg (10.8lbs) |
|
Plastic carrying case |
3.4kg (7.5lbs), Weight of the carrying case may be slightly different due to specific market. |
|
|
Power supply |
||
|
Battery (BT-G1W) |
Operating time (Fine mode) |
Approx. 27 hours (Single distance measurement every 30 seconds at +20°C / +68°F*4) |
|
Approx. 9 hours (Continuous distance measurement at +20°C / +68°F) |
||
|
Battery charger |
Recharging time |
1.8 hours (+10 to +40°C) |
Kelengkapan Paket Total Station TOPCON GTS 255 :
- 2x aluminium tripod
- 1x range pole 2,15m
- 1x prisma poligon/tribrach
- 1x prisma detail/pole
- 1x kabel data + software download
