Total Station Topcon GTS 255 dengan kualitas terjamin dan harga ekonomis.TOPCON GTS 255 dilengkapi dengan Dual Axis Tilt Sensor Total Station. Kemampuan jangkuan jarak 1 prisma dapat mengukur hingga 2,000 M
Accuracy jarak juga sangat tinggi ± 2mm+2ppm, Angle accuracy : 5” dengan Internal memory yang sangat lega yaitu 24,000 Points, kemampuan Battery life time : 9 jam dan dilengkapi dengan satu batere.
Spesifikasi Teknis :
Telescope
Length 150 Millimeters
Objective Lens Diameter 45mm (EDM:50mm)
Magnification 30x
Image Erect
Field of View 1°30
Resolve Power 3 "
Min. Focus Distance 1.3 meters
Measurement Range
1 Prism 6560 ft, 2000 meters
3 Prism 8856 ft, 2700 meters
Measuring Accuracy
Prism Mode ±(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement Time 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method Absolute Reading
Detection 2 horizontal, 1 vertical
Minimum reading 5”/1”, 1/5 mgon
Tilt Correction
Type Automatic Vertical and Horizontal compensator
Method Liquid surface reflective profile sensor reading type
Compensating Range ±3''
Correction Unit 1 arc sec, N/A
Computer Unit
Display 2 screen, dot matrix graphic LCD display
Power
Approximate battery life 9 hours including distance measurement , 40 Angle measurement only
Durability
Protection against water and dust IP54
Temperature -20 to 50 degrees C (-4 to 122 degree F)
Weight
Instrument 4.9KG (10.8lb)

Paket sudah termasuk :

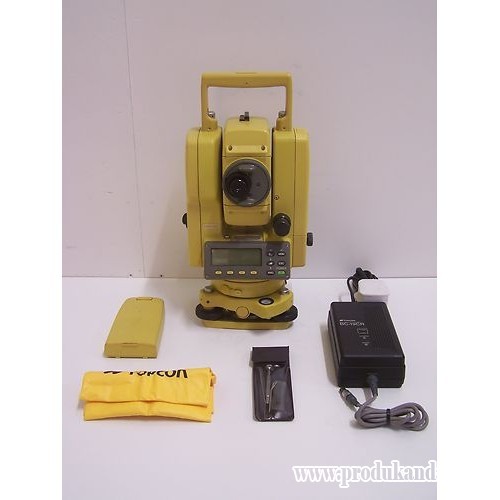

Main unit Total Station Topcon GTS 255
• 2 x Alumunium Tripod
• 1 x Range Pole
• 1 x Single Prisma
• 1 x Prisma Polygon
• 1 x Cable Data
• 1 x Software
Garansi 1 Tahun
