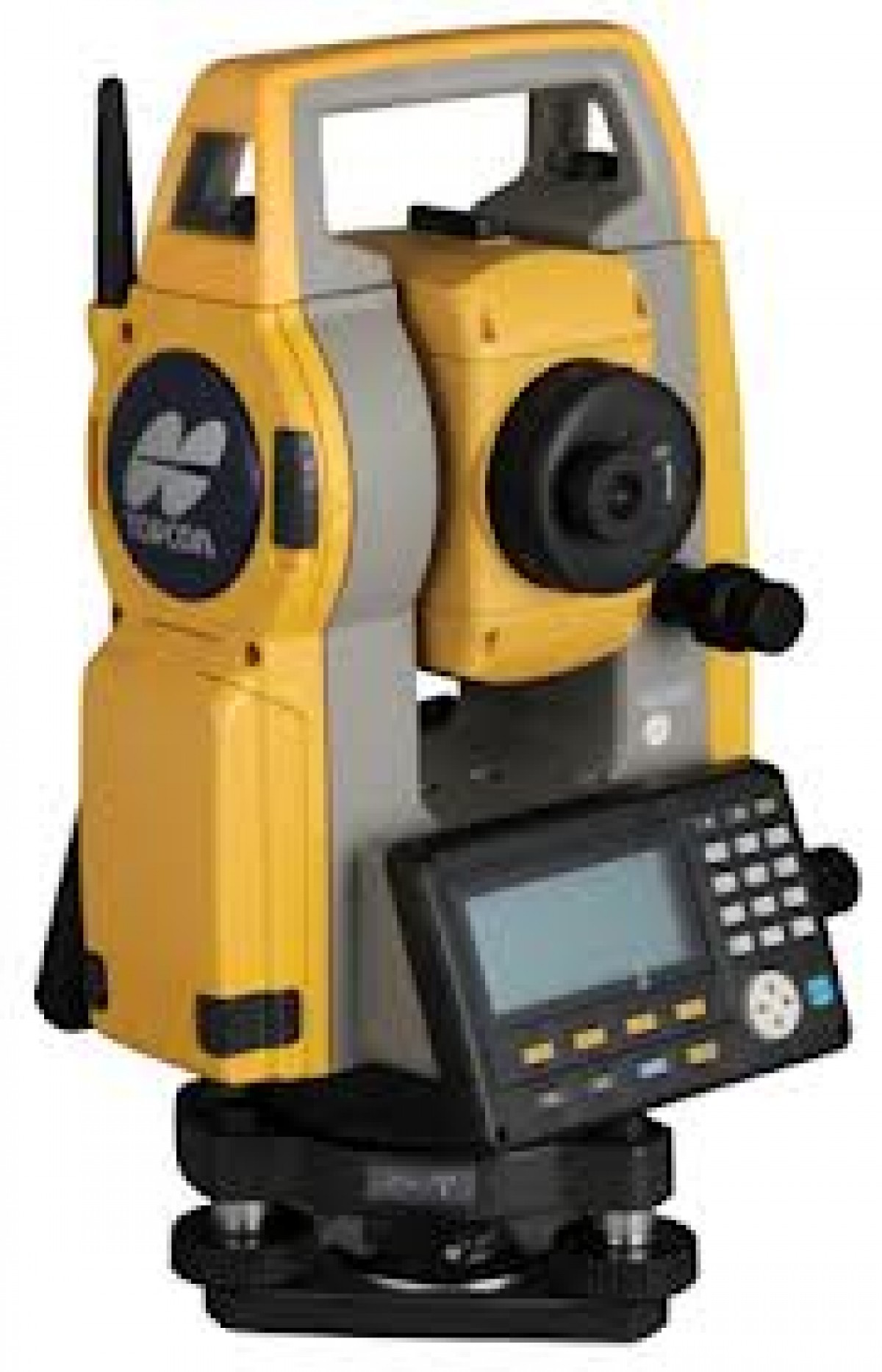

Topcon ES105
5" Accuracy
Advanced Security and Maintenance with New TSshield
Fast and Powerful EDM
Exclusive Longlink Communications
Unsurpassed Angle Accuracy
Super Long Batter Life-36 Hours!
Metal chasis,Water/Dust Proof
Advanced Security and Maintenance with New TSshield
Fast and Powerful EDM
Exclusive Longlink Communications
Unsurpassed Angle Accuracy
Super Long Batter Life-36 Hours!
Metal chasis,Water/Dust Proof
Berat : 0
Detail Produk: Angle Measurement
Min. Resolution/Accuracy 1”/5”
Compensatione Calibration System) Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m (ES-107 3000m)
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec / Rapid: 0.7 sec / Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard Dual, Graphic, Backlit LCD (ES-107 Single)
Battery Operation up to 36 hours
Dust/Water Protection IP66
Wireless Connection Bluetooth Class 1
Operating Range -20C to +50C
What's in the Box
ES-105 Total Station
1 Battery (BDC70)
Battery Charger
Lens Cap
Lens Hood
Tool Pouch
Screwdriver
Lens Brush
Adjusting Pin
Cleaning Cloth
USB stick with digital Manual
Quick Guide
Carry Case
Carry Straps
