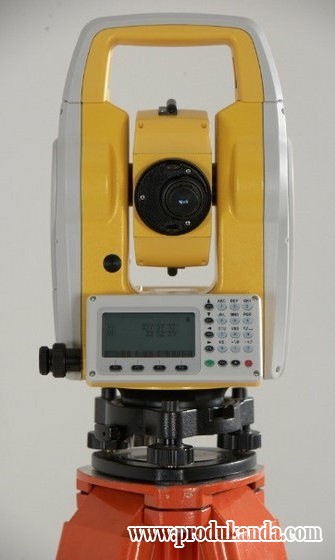

Total Station HI-Target ZTS-320R
Specifications
Model
ZTS-320/320R
Angle Measurement (Hz, V)
Measurement Method
Absolute Encoder
Display resolution
1/5selectable (2 mgon)
Accuracy *1
2
Distance Measurement
Laser output
Measuring Range
Reflector-less *2
350m (1,148 ft.)
Reflector
(60mmx60mm)
800m (2.624 ft.)
Single prism
2000m to 2500m (6,560 ft. to 8,200ft.)
Three prisms
5000m (16,400ft.) under good condition *3
Accuracy
Reflector-less
3+2ppm x Dmm
Prisms
2+2ppm x Dmm
Measuring Time
Reflector-less
Fine/Repeat 2s, tracking 1.5s
Prisms
Find 1.5s, Repeat 1s, tracking 0.5s
Telescope
Magnification
30X
Field of View
130
Minimum Focusing Distance
1.5m (4.9ft.)
Reticle
Illuminated
Compensator
System
Single-axis liquid-electric tilt sensor
Dual-axis (optional)
Working Range
3 (56 mgon)
Setting Accuracy
1(0.3 mgon)
General
Communication
Internal Data Memory
Approx. 20,000 Points
Interface
Standard RS232 port, SD card*4, mini USB , standard USB port (Bluetooth optional)
Data Format
ASCII
(DXF/GSI optional)
Operation system
Real-time English Operating System
Display
Graphics:192*96 dots /backlight / Character:6 lines*12 characters/
contrast adjustment
Keyboard
2 sides Alphanumeric keyboard
Laser Plummet
Type
Laser diode, Brightness Adjustment in steps
Optical plummet (optional)
Beam Accuracy
1 mm ( 1.5m instrument height)
Power supply
Battery Type
Rechargeable Li-ion battery
Voltage/Capacity
ZBA-400:7.4V(DC) / 3000mAh
Operating time with
ZBA-400
Optimal 16 hrs*5 (single distance measurement every 30 second)
Measuring times
Around 12000 times
Weight (Incl. Battery &Tribrach )
Approx. 5.5kg (12.1lb.)
Environmental
Operating temperature
-20 to50( -4to +122)
Storage temperature
-40 to70(-40to + 158)
Dust &Water proofing (IEC60529 Standard)
IP55
*1 Standard deviation based on ISO 17123-3
*2 Calculated by Kodak Gray Card white side(90% reflective), exact distance depends on measuring object, observation and environment conditions
*3 Good condition: no haze, visibility about 40km, moderate sunlight,
*4 Maximum extension up to 32GB.
*5 New battery at 25, 24 hours continuously angel measurement mode.
