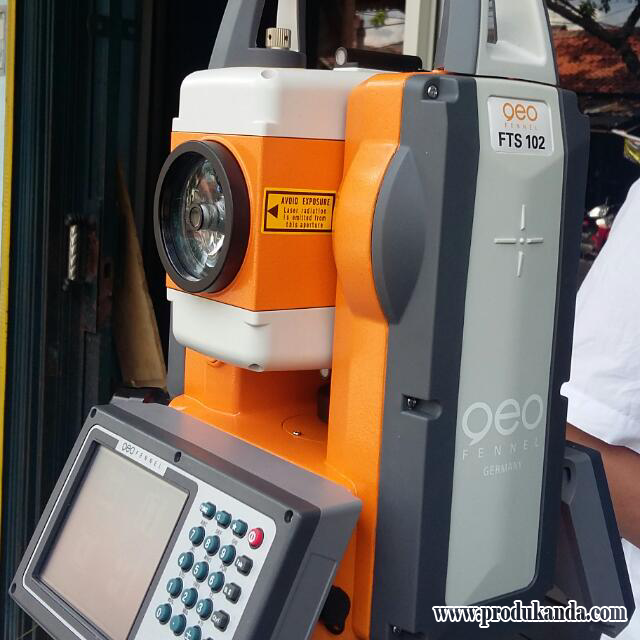

Total Station geoFENNEL FTS 102 made in Germany
Call 081333102011
Supplied with
Desktop charger
2 x Li-Ion battery
Data cable
Container
Stake-out aid RS 96
Technical data
Objective Telescope
Image Erect
Objective aperture 45 mm
Magnification 30 x
Field of view 1 30
Resolving power 3
Shortest focus distance 1.0 m

Operation
Reflectorless 1 500 m
Reflective tape target 1 800 m
Mini Prism 1 1200 m
Single standard prism 1 3500 m
Accuracy 2 mm + 2 ppm

Angle measurement
Minimum reading resolution 1 / 5
Angle accuracy 2
Angle units 100 % / 360 / 400 gon

Compensator
Axis 2 axis
Range 3

Vial sensitivity
Plate level vial 30 / 2mm
Circular vial 8 / 2 mm

Laser plummet
Accuracy 0.5 mm / 1.5 m
Laser class 2

Power supply
Li-Ion battery 4400 mAh
Operating time 8 h

Display
Dual TFT 3.5 colour display
Backlight yes
Keyboard 26 Keys

Data process
CPU / clock frequency 2 GB / 528 MHz
OS Windows CE 5.0
Application software SurvCE / FieldGenius
I/F RS-232C, Bluetooth, USB
Other
IP class IP 55
Operating temperature 20 C 50 C
Dimensions 183 x 342 x 167 mm
Weight 5.4 kg
Complete with :
2 x Alluminium Tripod
1 x Prisma Polygon
1 x Pole
1 x Single Prism
1 x Kabel Data
1 x Software data

Hubungi : 081333102011
