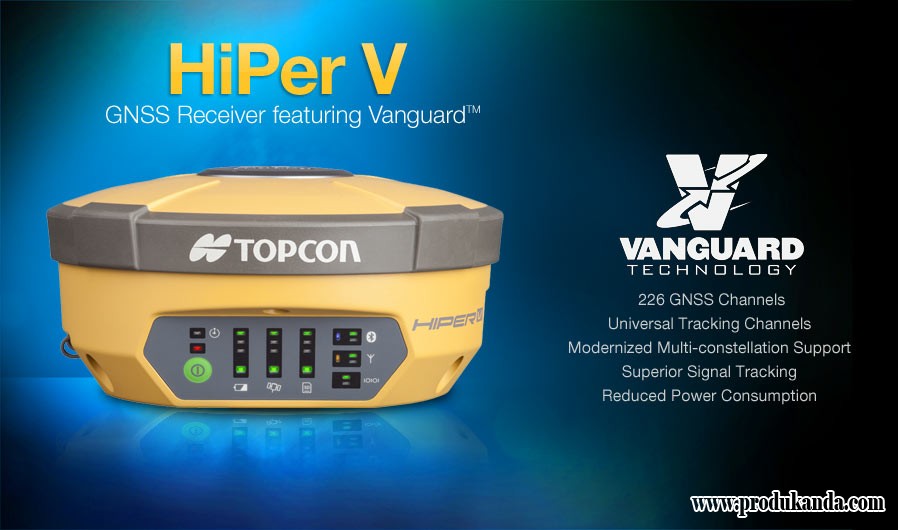

TOPCON Hiper V
HiPer V
Compact, cable-free solution with Vanguard Technology for all GNSS positioning applications.
In a continued commitment to improving the productivity of positioning professionals, Topcon enhances the HiPer family of products by adding Vanguard Technology to the HiPer V. In the early 2000’ s Topcon revolutionized GNSS receivers by integrating the design to be compact and light weight. Topcon continues the revolution with Vanguard technology.
Features:
Vanguard Technology
226 GNSS Channels
Rugged, Magnesium Alloy Construction
Integrated RTK and Static Receiver
Fence Antenna Advanced Performance
Topcon raises the standard once again by adding Vanguard Technology’ s 226 channels and fence antenna into a versatile, configurable receiver, HiPer V. The additional channels and precision antenna element make RTK positioning faster and more productive than any other receiver on the market.
Specifications
HiPer V
Compact, cable-free solution with Vanguard Technology for all GNSS positioning applications.
In a continued commitment to improving the productivity of positioning professionals, Topcon enhances the HiPer family of products by adding Vanguard Technology to the HiPer V. In the early 2000’ s Topcon revolutionized GNSS receivers by integrating the design to be compact and light weight. Topcon continues the revolution with Vanguard technology.
Features:
Vanguard Technology
226 GNSS Channels
Rugged, Magnesium Alloy Construction
Integrated RTK and Static Receiver
Fence Antenna Advanced Performance
Topcon raises the standard once again by adding Vanguard Technology’ s 226 channels and fence antenna into a versatile, configurable receiver, HiPer V. The additional channels and precision antenna element make RTK positioning faster and more productive than any other receiver on the market.
Totalcare Info Find a Dealer Brochure Ask Us
Related Products
GRS-1 GPS Receiver
The world’ s first fully integrated dual constellation network enabled RTK rover system
FC-236
MIL-STD-810G with high-speed HSDPA wireless networking Field Controller
MAGNET
Field and Office. Connected.
Pocket-3D
Simplify data collection of cuts, fills, layout points, lines, and surfaces easily on Windows Mobile, Windows Embedded Handheld, and Windows PC platform field controllers.
TopNET Live
Subscribe to a GNSS Network in your area
SPECIFICATIONS
Tracking Capabilities
Number of Channels1
226 Tracking Channels
Universal Tracking Technology
Tracked Signals GPS: L1 CA, L1/ L2 P-code, L2C
GLONASS: L1/ L2 CA, L1/ L2 P-code
SBAS: WAAS, EGNOS, MSAS
Positioning Accuracy2
Static L1 only
H: 3.0mm + 0.8ppm
V: 4.0mm + 1.0ppm
L1+ L2
H: 3.0mm + 0.1ppm3
V: 3.5mm + 0.4ppm3
RTK L1+ L2
H: 10mm + 1ppm
V: 15mm + 1ppm
DGPS 7.5 hours in static mode
at 68° F ( 20° C)
w/ Bluetooth® connection
External Power Input Voltage 6.7 to 18V DC
1. Number of channels and tracked signals vary according to receiver configurations.
2. RMS Values. Accuracy depends on the number of satellites used, obstructions, satellite geometry ( DOP) , occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality.
3. Under nominal observing conditions and strict processing methods, including use of dual frequency GPS, precise ephemerides, calm ionospheric conditions, approved antenna calibration, unobstructed visibility above 10 degrees and an observation duration of at least 3 hours ( dependent on baseline length) .
