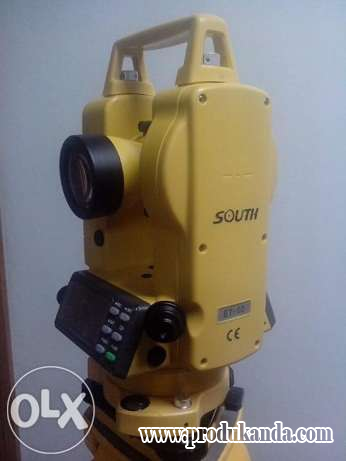

Theodolite South ET02, 081333102011

The ET series Theodolites have Smart appearance, reasonable structure, practical functions. They are easy-to-use, and with excellent performance and reliable quality.
SPECIFICATION
ET-02
Telescope:
Magnification: 30X
Objective Lens: 45mm
Overall Length: 157mm
Stadai Ration: 100
Stadia Constant: 0
Image: erect
Field of View: 1 30 "
Minimum Focus: 1.4m
Resolving Power: 3.0'
Electronic Angle Measurement:
Reading System Photoelectric detection by incremental encoder
Diameter of Circle ( VHz) : 79mm
Minimum Reading: 1 " / 5 " ( Selectable)
Accuracy: 2 " 5 "
Horizontal Angle Dual Dual
vertical Angle Dual Single
Display: 081333102011
( LCD) Display Type 2 sides, segment LCD in two lines
Level Sensitivity:
Plate Level: 30 " / 2mm ( 30 " per 2mm)
Circular Level: 8' / 2mm ( 8 " per 2mm)
Auto Vertical Compensator:
System: Liquid-electric detection/ plate level selectable
Working range: + 3'
Accuracy: 1 " ( Liquid-electric detection) 30 " " / 2mm ( plate level)
Optical Plummet Telescope:
Image: Erect . 081333102011
Magnification: 3X
Focusing Range: 0.5m - infinity

Paket Penjualan :
1 x South ET-02
1 x Alumunium Tripod
1 x Rambu ukur 3 m

Hubungi :
Nurcahyo
Hp.081333102011 atau 087882318405
Alamat : jalan muctar raya no.1d kreo
Email : surveyalat@yahoo.com
