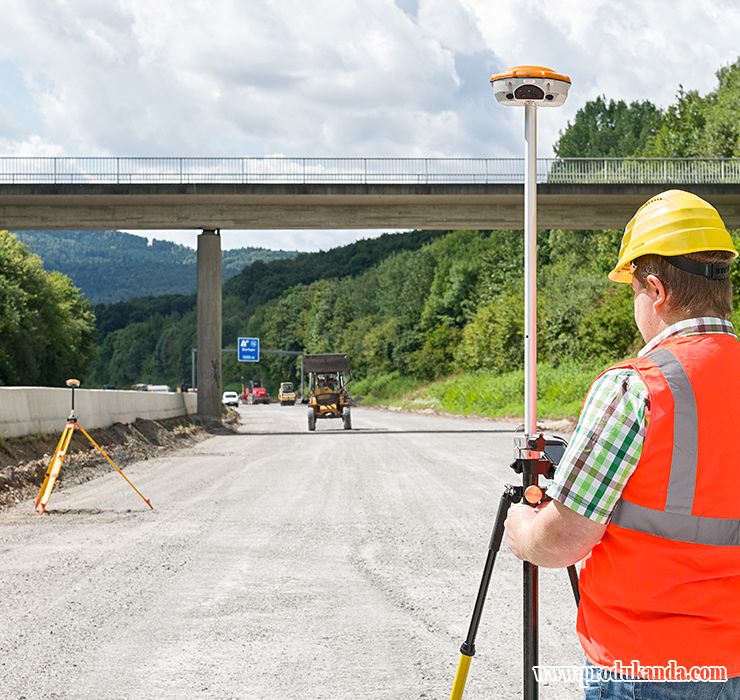

GPS GEODETIC Geofennel FGS 1 , ,081333102011
Features
High speed processing
Support for both post-processing and kinematic
Processing ability separate or to be combined with GPS, GLONASS and BeiDou
Supports downloads & use of precise ephemeris
Generation of various reports
User friendly
Supplied with
GPS SYSTEM FGS 1 COMPLETE SET
ART.-NO. 751000
2 GNSS Antenna FGS 1
1 MicroSurvey Fieldgenius Software
1 Fieldcontroller DC5
1 Postprocessing Software
2 USB-Cable for FGS 1
2 RS-232 Cable for FGS 1
1 Measuring Tape 3 m
1 Tribrach AJ 10 black
1 Tribrach Adaptor AL 11-D black with optical plummet
1 Container
1 Operators‘ manual
GPS SYSTEM FGS 1 NETZWERK-SET
ART.-NO. 750100
1 GNSS Antenna FGS 1
1 MicroSurvey Fieldgenius Software
1 Fieldcontroller DC5
1 Postprocessing Software
1 USB-Cable for FGS 1
1 RS-232 Cable for FGS 1
1 Measuring Tape 3 m
1 Container
1 Operators‘ manual
Technical data
| Signal Tracking | |
| 256 channels with simultaneously tracked satellite signals: | |
| - GPS | L1 C/A, L1/L2P, L5 |
| - GLONASS | L1/L2 |
| - BeiDou | B1, B2, B3 |
| - Galileo | Yes, but not activated |
| - SBAS | WAAS, EGNOS, MSAS |
| Performance Specifications | |
| Cold start | <50s |
| Warm start | <30s |
| Initialization time | typically <10s |
| Initialization reliability | typically >99,9% |
| Signal reacquisition | <2s |
| Positioning Specifications | |
| Post processing static | |
| - horizontal | 2,5 mm + 0,5 ppm RMS |
| - vertical | 5,0 mm + 0,5 ppm RMS |
| Real time kinematic | |
| - horizontal | 10 mm + 0,5 ppm RMS |
| - vertical | 20 mm + 0,5 ppm RMS |
| E-RTK (<100 km) | |
| - horizontal | 0,20 m + 1 ppm RMS |
| - vertical | 0,40 m + 1 ppm RMS |
| Code differential GNSS positioning | |
| - horizontal | 0,25 m + 1 ppm RMS |
| - vertical | 0,50 m + 1 ppm RMS |
| SBAS | typically <1 m 3D RMS |
| Stand-Alone | <1,5 m RMS |
| Communication | |
| 1 Serial port (7 Pin Lemo), Baud rates up to 921 600 bps | |
| Radio modem (optional) | Tx/Rx with full frequency rang from 410 – 470 MHz |
| - transmit power | 0.5 – 2W adjustable |
| Positioning update rate | 1 Hz, 2 Hz, 5 Hz, 10 Hz |
| 5 LED Indicating lights | Power, satellite tracking, differential data and data recording |
| Bluetooth®; V 2.X protocol, work compatible with Windows 7®, Windows mobile® and Android® | |
| Data Format | |
| Data inputs / outputs | |
| - Correction data I/O | RTCM 2.x, 3.x, CMR & CMR+ (GPS only) |
| Position data outputs | |
| - ASCII | NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL |
| geo-FENNEL Binary update to 20 Hz | |
