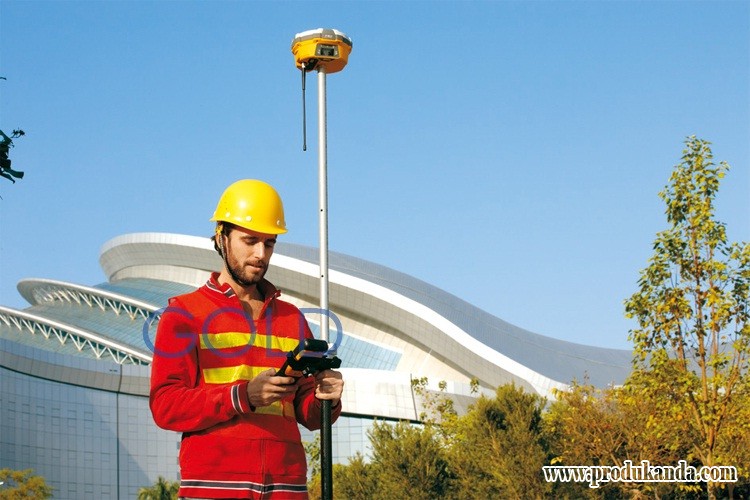

V60 GNSS RTK SYSTEM
Linux Operation System
ARM 9G20 400MHz CPU, embedded Linux OS to support faster data transmission.
Multi Constellation Tracking
l 220 tracking channels.
l Supports GPS, GLONASS, GALILEO, BDS, SBAS.
l Built-in NGS Approved Antenna.
High Power Transceiver UHF Radio
l The transceiver UHF radio enables the working mode switchable between base and rover.
l 5 watts (Max.) HI-TARGET internal UHF radio and 2 watts (Max.)Pacific Crest micro XDL internal UHF radio are optional
l Pacific Crest TrimTalk© internal UHF radio is compatible with other RTK.
PERFORMANCE SPECIFICATIONS
MEASUREMENTS
• 220 Channels
• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
• High precision multiple correlator for GNSS pseudo range measurements
• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
• Signal-to-Noise ratios reported in dB-Hz
• Proven Pacific Crest low elevation tracking technology
Satellite signals tracked simultaneously
GPS : Simultaneous L1C/A, L2C, L2E, L5
GLONASS : Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
SBAS : Simultaneous L1 C/A, L5
Galileo : Simultaneous L1 BOC, E5A, E5B, E5AltBOC
BDS/Compass: B1, B2
QZSS : L1 C/A, L1 SAIF, L2C, L5
POSITIONING PERFORMANCE
Static and Fast Static GNSS surveying
Horizontal : 2.5mm+0.5ppm RMS
Vertical : 5mm+0.5ppm RMS
Post Processing Kinematic
(PPK / Stop & Go) GNSS surveying
Horizontal : 1cm+1ppm RMS
Vertical : 2.5cm+1ppm RMS
Initialization time : typically 10 minutes for base while 5 minutes for rover
Initialization reliability: typically > 99.9%
Real time Kinematic (RTK) surveying
Horizontal : 8mm+1ppm RMS
Vertical : 15mm+1ppm RMS
Initialization time : typically < 8 seconds
Initialization reliability: typically > 99.9%
Code Differential GNSS positioning
Horizontal : 25cm+1ppm RMS
Vertical : 50cm+1ppm RMS
SBAS : 0.50m Horizontal, 0.85m Vertical
HARDWARE
Physical
Dimensions (W x H): 18.20cm x 9.80cm (7.17 in x 3.86 in)
Weight : 1.25kg (2.76lb) without internal battery
Operating temperature : -45℃ to +65℃ (-49℉ to +149℉)
Storage temperature : -55℃ to +85℃ (-67℉ to +185℉)
Humidity : 100%, considering
Water/dustproof : IP67 dustproof, immersion to depth of 1m (3.28ft).
Shock and Vibration : Designed to survive a 3m (9.84ft) natural fall onto concrete.
Electrical
Power 6V to 28V DC external power input
Power consumption ≤3.5W
Automatic Switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment
Internal battery life
Static 13 - 15 hours
RTK Rover (UHF/GPRS/3G) 10 - 12 hours
RTK Base 8 - 10 hours
I/O interface
1 x Bluetooth
1 x standard USB2.0 port
1 x TNC UHF connector
2 x RS232 serial port
2 x DC power input (8-pin & 5-pin)
1 x Micro SD card port
Contact Tlp atau WA : 081333102011 atau 021.7321129 ( Nurcahyo)
COMMUNICATION AND DATA STORAGE
3G Communication
Fully integrated, fully sealed internal 3G, compatible with GPRS
Network RTK (via CORS) range 20-50km
HI-TARGET internal UHF radio (standard)
Frequency : 450~470MHz with 116 channels
Transmitting Power : 1W, 2W, 5W adjustable
Transmitting Speed : 9.6Kbps, 19.2Kbps
Working Range : 5km typical, 8~10km optimal
Pacific Crest internal UHF radio
Frequency : 403~473 MHz
Transmitting Power : 0.5W, 2W adjustable
Transmitting Speed : Up to 19.2Kbps
Support most of radio communication protocol
Working Range : 3~5km typical, 8~10km optimal
HI-TARGET External UHF radio (standard)
Frequency : 460 MHz with 116 channels
Transmitting Power : 5W, 10W, 20W, 30W adjustable
Transmitting Speed : Up to 19.2Kbps
Working Range : 8~10km typical, 15~20km optimal
Pacific Crest ADL Vantage Pro External UHF radio
Frequency : 390~430 MHz or 430~470 MHz
Transmitting Power : 4W to 35W adjustable
Transmitting Speed : Up to 19.2Kbps
Support most of radio communication protocol
Working Range : 8~10km typical, 15~20km optimal
Support other external communication device
For example, external GSM modem.
Data storage
1GB Internal storage+ 8GB Internal Micro SD Card memory (Support up to 32GB extension)
Record GNS and Rinex format simultaneously
Data formats
(1Hz positioning output, up to 50 Hz - depends on installed option)
CMR: sCMRx, CMR, CMR+ input and output
RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
Navigation outputs Binary: GSOF
1 Pulse Per Second Output
